- Installs easily above ground
- No ground loop necessary for installation
- Not affected by underground obstructions
- Weatherproof and waterproof
- No Adjustment Required
- Very fast and robust object detection
- True presence detection of single lane / area
- IP65, IP66, IP67 & IP68 rated
- NEMA 1, 2, 3RX, 3S, 4X, 5, 6, 6P, 12 & 13 rated
Sensing elements: 2 ultrasonic in Spectrum Phased Array Sonar configuration
Operating range: 1ft. – 5ft.
Response time: 2.0 / 4.0 seconds
Relay output configuration: 1 SPDT (form C)
Relay Output: Settings for Presence, Pulse on ENTRY, EXIT or BOTH
Relay contact rating: 10A @ 24VDC
Power Indicator: Yellow LED
Vehicle Detection Indicator: Red LED
Supply voltage: 9/24 VDC
Operating current: 40mA
Operating temperature: -40C…+90C

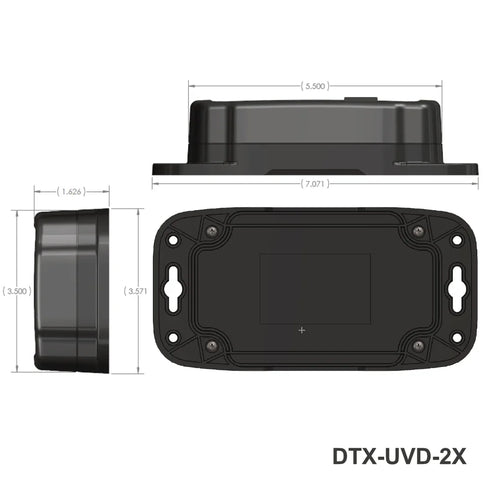

Dimensions: 7” x 3.5" x 1.6”
Weight: 0.5 lbs. (226g)
Housing: Impact-resistant polycarbonate

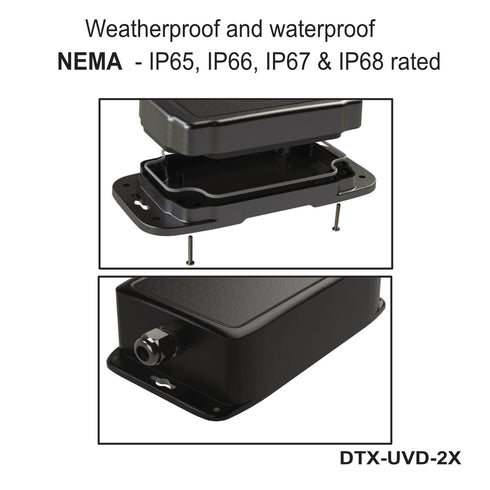

IP65, IP66, IP67 & IP68 rated
Weatherproof and waterproof
Made in the USA
Connection: 6 position terminal block
Mechanical protection: NEMA 1, 2, 3, 3R, 3RX, 4, 4X, 5, 6,12 & 13 rated
