DTX1 Drive Thru Wireless Headset Intercom System - Kit - QSR Coffee Stand Trailer Kiosk Restaurant Drive Through

VENDOR: Drivethrucity

$2,480.00$1,790.00

You Save: $690.00 (28%)

Real time 9 visitor right now



EQUIPMENT OVERVIEW


This system is ideal for Quick Service Restaurants (QSRs) and stores with drive-thru, but it can also be used in other businesses. It provides an easy and efficient way to communicate with customers. The base station gives you a full range of adjustment options to help optimize the efficiency of your communication system.


Your basic system includes:

Base Station: This is the control center for your entire system. All devices and connected components are controlled from here. Headsets are paired here for use, and your system is also configured here. The Base Station also provides feedback on the status of system components, such as headsets and speakers.

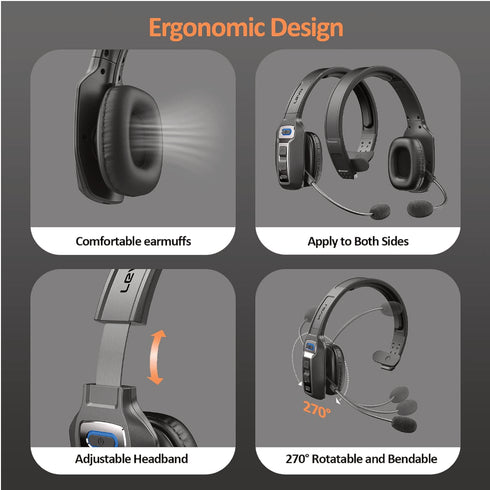

Bluetooth Headset: The headset allows you to communicate with customers in a store or drive-thru lane environment.
The DTX1 Intercom Base Station is compatible with most Bluetooth headset brands on the market.
You do not need to use any particular brand headset.

These headsets can be identified as call center headsets, trucker headsets, conference headsets, etc., and vary in some features, such as battery size, talk and standby duration, audio quality, and microphone sensitivity.
Overall, commercial headsets typically have similar functionalities, regardless of the price. Since all intercoms are designed to work better with voice frequencies, there is no need for a high-fidelity headset, which is better for music.

This DTX1 intercom compatibility feature allows for quick and inexpensive headset replacement.
No need to pay for high-priced proprietary brand headsets or costly service and repairs from authorized dealers only.

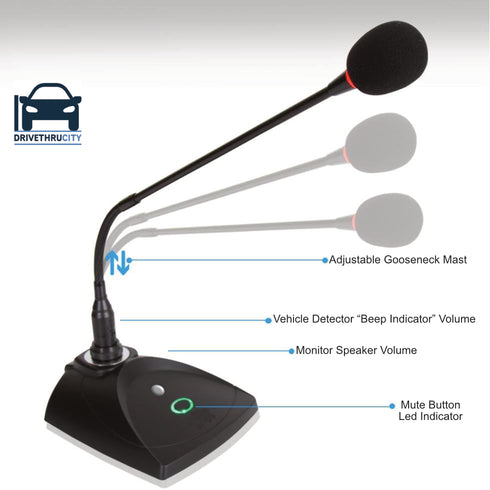

Desktop Microphone and Speaker Base: This device allows you to communicate with customers without wearing a headset. It can be used for handsfree speaking or push-to-talk (PTT). The base includes a volume control and vehicle detector indicators.

External Speaker/Microphone Boxes: These include external speakers and microphones found in speaker post enclosures, typically located in drive-thru lanes. These devices facilitate two-way communication between the store and customers at menu boards, kiosks, and in drive-thru lanes.

Ultrasonic Vehicle Detector: Detects vehicles when they are in front of the drive-thru speaker post. An audible beep sound alerts the drive-thru communication operator to the presence of a vehicle. It automatically cuts off communication when the vehicle leaves.



The DTX1 system supports two different Bluetooth over-the-head headsets, including different types, such as single ear earphones, earpieces, and earbuds.
These devices can also be used as listen-only devices to monitor the drive-thru communication.
You can mix Bluetooth headset brands and types and adjust them individually to be appropriate for your use case.

If your headset is broken, out of batteries, or impractical to use, you can use the Desktop Mic & Speaker Base.
It has a built-in audio amplifier with a volume control, a directional microphone that reduces noise, hands-free and push-to-talk mute buttons, and a flashing light and volume-adjustable beep sound to alert you when a car is present in the drive-thru lane.

Easy installation: The Drive Thru Headset Intercom System is designed for easy DIY installation. With just a few simple tools, you can have your system up and running in no time.


Intercom Function

When a car is present at the drive-thru in front of the speaker post, the following functionalities are in place:

• A beep sound is emitted on the headsets and the desktop microphone.
• The beep sound will continue until someone answers the drive-thru call.

Any available order taker can answer the call using either the headsets or the desktop microphone.


If either headset 1 or headset 2 answers the call, the respective LED will indicate which one is actively taking orders.

Once a response is provided on any device, the other two devices enter a monitoring mode, allowing them to listen only.

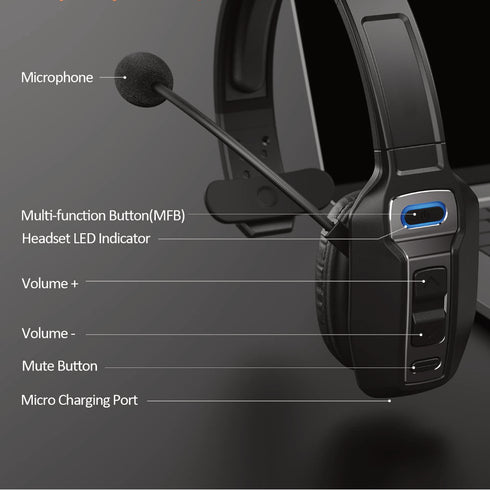

You can mute the audio monitor by tapping the multi-button on the headset.

While communicating with the customer, you can mute or unmute your microphone by tapping the headset's multi-button.

This action will trigger a beep sound, and the MUTE LED on the base station will display the mute status.

If necessary, you can promptly adjust the main volume control on the base station for immediate effect.

When the car departs from the speaker post, the intercom system will automatically terminate the communication after 2 seconds.


___________________________________________________________________________

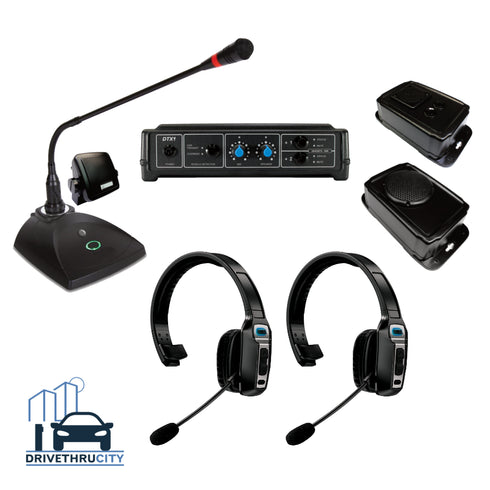

This System includes:

1 (one)   DTX1 Base Station Intercom
2 (two)   Wireless Headsets - Bluetooth
1 (one)   Desktop Gooseneck Microphone with volume control
1 (one)   Desktop Speaker Monitor with wall bracket
1 (one)   External Speaker Box and Junction Box - Waterproof
1 (one)   External Digital Microphone with Ultrasonic Vehicle Detector - Waterproof
1 (one)   Power Adapter - 12v 5amps
1 (one)   RS232 Cable Adapter
1 (one)   USB Dual Port Bluetooth Headsets Wall Charger

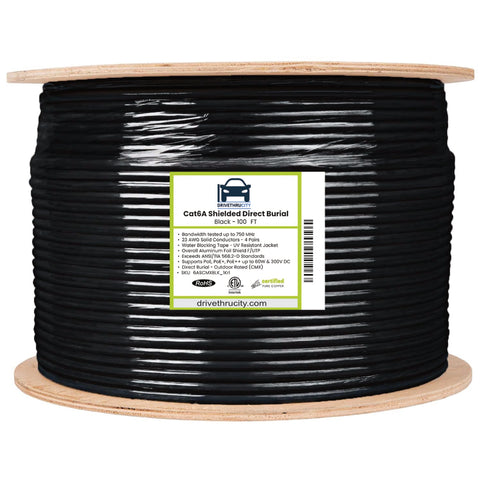

100 FT Direct Burial Shielded CAT6e wire.
Printed Installation Guide and User Manual.

__________________________________________________________________________________

EQUIPMENT SPECIFICATIONS

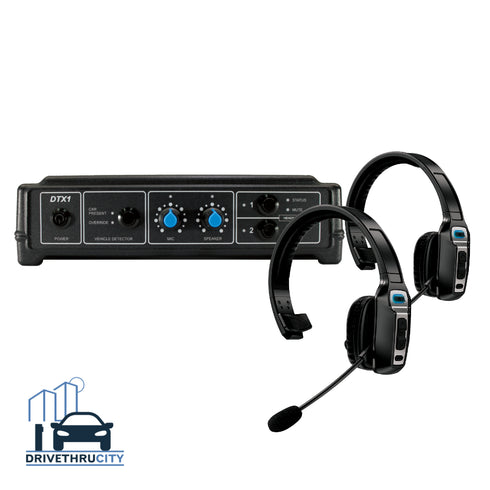

Base Station
Voltage input: 12VDC
Outside speaker output: 15 watts RMS into 4 ohms
Bluetooth® Frequency: 2.4 GHz ISM spectrum band (2400 to 2483.5 MHz)
Dimensions: 5.25 x 9.18 x 2.36 in / 133 x 233 x 60 mm
Weight: 2.25 lbs maximum

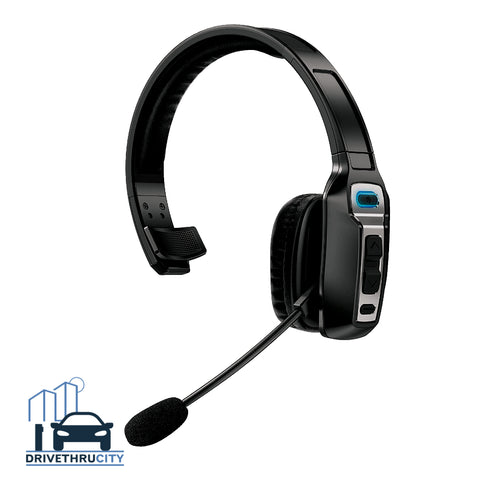

Wireless Headsets
Bluetooth® 5.2
Noise Control: Active Noise Cancellation
Adjustable microphone boom
Working range: 33 feet / 10 meters
Battery: Built-in 350mAh - USB charging Port
Charging Time: 2 Hours
Micro-USB Charging Cable
Frequency: 2.4 GHz ISM spectrum band (2400 to 2483.5 MHz)
FCC ID 2AMH2-MBH15

Ultrasonic Vehicle Detector
Sensing elements: 2 Ultrasonic in Spectrum Phased Array Sonar configuration
Operating range: 1ft. – 5ft.
Response time: 2.0 / 4.0 seconds
Real-time background automatic calibration
Waveform signature analysis with noise rejection
True presence detection of single lane / area
Operating temperature: -40C…+90C

Outside Speaker
Corrosion-resistant and waterproof (3.3") full-range speaker
Rated max. power: 25 W
Nominal impedance Z: 4 Ohm
Temperature range : −40 ... 80 °C
Mean sound pressure level: 84 dB (1 W/1 m)

Outside Microphone
Digital MEMS Mic Array, DSDA Beam Forming
Noise Reduction, DSP Echo cancellation
Water-Dust resistant
Signal-to-noise ratio (SNR) and common sensitivity of −26 dBFS
Low Noise Integrated preamplifier

Outside Mic / Speaker Housing
Impact-resistant Polycarbonate
IP65, IP66, IP67 & IP68 rated
Weatherproof and waterproof
Mechanical protection: NEMA 1, 2, 3, 3R, 3RX, 4, 4X, 5, 6,12 & 13 rated
Made in the USA

Desktop Microphone Base
Condenser Mic, Low Noise
Mic Audio Sensitivity: 40 dB
Impedance:200 Ohm
Polar Pattern: Unidirectional
Signal-to-Noise Ratio: 78 dB
Dimensions LxWxH: 17 x 3.2 x 7.8 inches
Audio Power amplifier: 5 Watts
Audio Volume Control, Car Presence Indicators
Hands-free and push-to-talk (PPT) option
Mute control - LEDs indicators

Desktop Speaker
Speaker Output: 7 watts
Impedance: 4 Ohm
Mounting Type: Desktop / Wall Mount
Dimensions: 2.5"D x 3.5"W x 3.5"H
6 foot cord - 3.5 mm audio plug

AC Adapter
Input Voltage Range: 90 → 264 Vac
Input Connector: IEC 320-C14
Input Current: 1.5A at100Vac/ 60Hz– at 240Vac/ 50Hz
Output Voltage Rating: 12 VDC
Output Current Range: 5A
Safety Approved GS,CB,CE,UL/CUL,RCM, R-MEPS (EN62368-1, BS EN62368-1)
